KEFA terminal blocks, terminal block screw type, 128L-5.0 5.08 green color 128L terminal block PA66 NL plastic pcb block

Name: KEFA terminal blocks terminal block screw type 128L50 508 green color 128L terminal block PA66 NL plastic pcb block
Brand: KEFA or no mark
Price: 0.23 USD

Wholesale KEFA terminal blocks, terminal block screw type, 128L-5.0 5.08 green color 128L terminal block PA66 NL plastic pcb block from china suppliers

Place of Origin : China

Brand Name : KEFA or no mark

Certification : CE ROHS

Model Number : 2P 3P

MOQ : Negotiation

Price : 0.23

Packaging Details : 200pcs per inner box

Delivery Time : 2-5 days after receive deposit

Payment Terms : T/T

Supply Ability : 20000/days

mold : current mold or build new mold

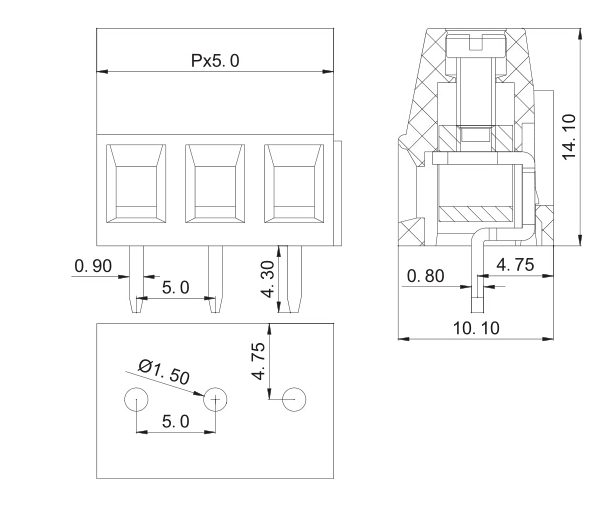

size : see detail drawing

funcation : connecting wire or line or power way

servise : OEM ODM sample free

Contact Now

Material:
Pitch:5.0 5.08mm
Poles: 2P 3P can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC1250V/1min
Wire range: 24-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5lb in)
Strip length: 6-7mm
contact daisyzhou_003 at 163.com

KEFA terminal blocks, terminal block screw type, 128L-5.0 5.08 green color 128L terminal block PA66 NL plastic pcb block

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
