1.3mm Pin Clamp Rising PCB Screw Terminal Block With Black Color Base

Name: 13mm Pin Clamp Rising PCB Screw Terminal Block With Black Color Base
Brand: KEFA RD
Price: 0.12 USD

Wholesale 1.3mm Pin Clamp Rising PCB Screw Terminal Block With Black Color Base from china suppliers

Place of Origin : China

Brand Name : KEFA RD

Certification : CE ROHS ul

Model Number : 2-24P

MOQ : Negotiation

Price : 0.12

Packaging Details : 200pcs per inner box

Delivery Time : 2-5 days after receive deposit

Payment Terms : T/T

Supply Ability : 20000/days

poles : 2P-24P

PIN SIZE : 1.3MM

PITCH : 5.0

COLOR : BLACK

Contact Now

1.3mm Pin Clamp Rising PCB Screw Terminal Block With Black Color Base

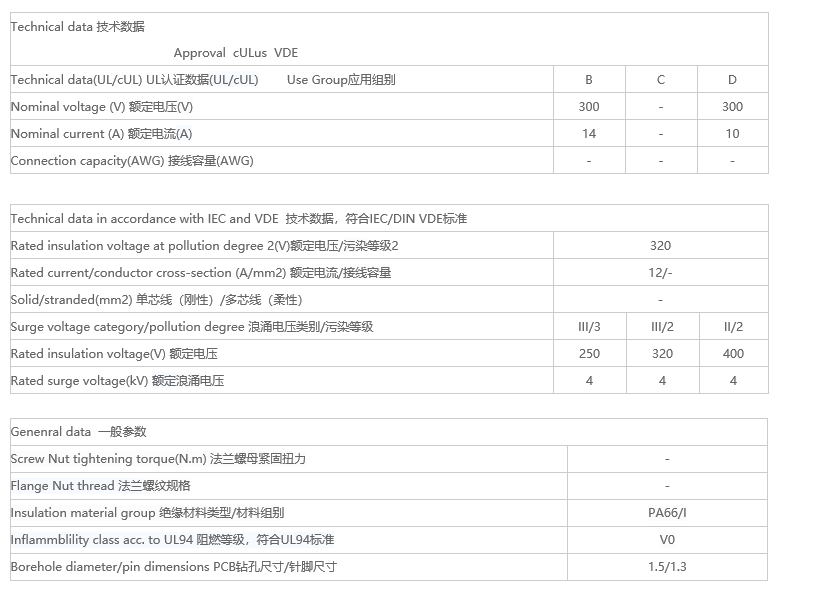

terminal block PIN, 332J 5.0

Material:
Pitch:5.0mm
Poles: 2-24P,
Screw: M3 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC2000V/1min
Wire range: 24-14 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5 lb in)
Strip length: 4.5-5 mm

1.3mm Pin Clamp Rising PCB Screw Terminal Block With Black Color Base

We are manufacturing a variety of Terminal blocks, mainly producing Pluggable terminal block, Barrier terminal block, Spring Terminal block, Screw terminal block, Feed through Terminal block. We also have the certifications of UL,VDE etc. OEM&ODM are warmly welcomed.Any question, please contact us freely.
