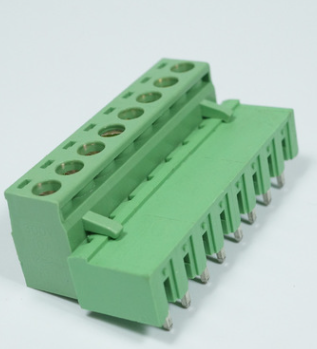

Terminal blocks male pluggable terminal block connector 5.0 2P-24P

Name: Terminal blocks male pluggable terminal block connector 50 2P24P
Brand: KEFA OR NO MARK
Price: 0.12 USD

Wholesale Terminal blocks male pluggable terminal block connector 5.0 2P-24P from china suppliers

Place of Origin : China

Brand Name : KEFA OR NO MARK

Model Number : 2-24P

Certification : CE ROHS

Price : 0.12

Packaging Details : 200pcs per inner box

Delivery Time : 2-5 days after receive deposit

Payment Terms : T/T

Supply Ability : 20000/days

MOQ : Negotiation

BRAND : NO MARK OR KEFA

House material : PA66 UL94-V0

Color : Green, gray and orange

Mached type : RD OQ type connector

Metal parts : Tin or Ni coated

Contact Now

Material:
Pitch: 7.5/7.62mm
Poles: 2P-24P
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: IEC:15A, UL:10A
With standing voltage: AC1500V/1min
Wire range: 28-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.5Nm(4.4 lb in)
Strip length: 7-8mm
