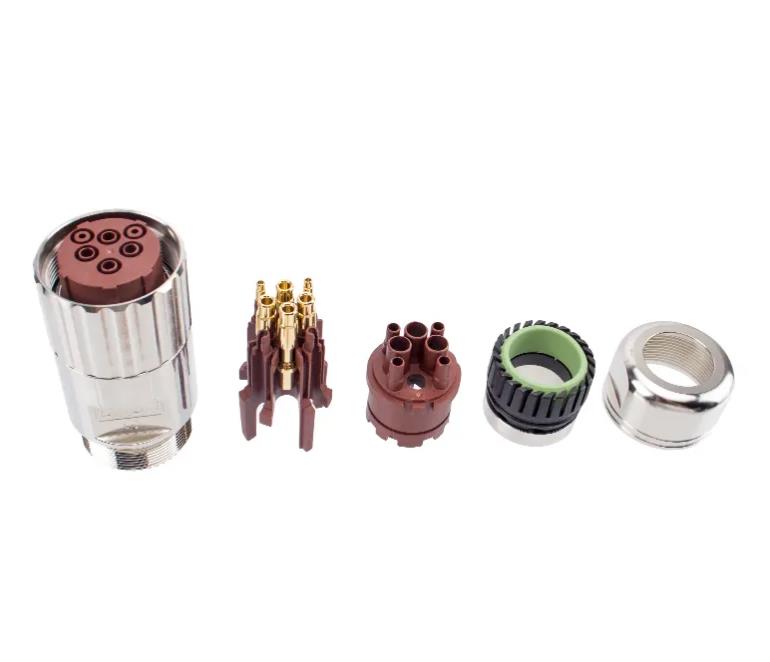

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40

Name: 30A 70A Large Motor Connector 6 8pins Straight Female Metal Plug Servo Power Connector M40
Brand: NO MARK
Price: 1 USD

Wholesale 30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40 from china suppliers

Brand Name : NO MARK

Model Number : SM-54346-0070

Certification : CE

Place of Origin : CHINA

MOQ : 30

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 5-8 days

Packaging Details : 1 full set in a mini plastic box 200pcs in a box

ITEM# : M40

Material : Zinc alloy

Color : silver color

Heart : in red color

Silicone ring : can replaceable

Contact Now

30A 70A Large motor Connector 6 8Pins Straight Female Assembly Metal Plug Servo Power Connector M40

Essential details

Place of Origin:: Guangdong, China

Brand Name:: NO MARK

Model Number:: M40 6PIN 8PIN

Type:: M40

Application:: Power

Gender:: Female, Female

Coupling:: Screw/Threaded

Shell Material:: Zinc Alloy Nikel-plated

Insert material:: PA66 UL94-V0

Contact material:: Brass, gold-plated

PINS:: 6P, 8P

Cable diameter:: 16mm-26mm

Keywords:: CSTA263NN00450001000,CSTA264NN00450001000

Temperature range:: -40°C -- +130°C

Shell Material:	Zinc Nickel-plated	Type:	M40 Female Plug(Assembly)
Insert Material:	PA66 UL 94-V0	Coupling:	Threaded
Contact Material:	Brass, gold-plated	IP Level:	IP67/IP68
Applicable Temp.:	-40℃~+130℃	Termination:	Crimp
Durability:	More than 50cycles	Wire diameter:	16~26mm
Rated voltage:	AC/DC 630V/250V	Rated current:	70A/30A
Contact resistance:	≤1mΩ	Insulation resistance:	≥100mΩ
Application:	Aerospace, navigation, communication, medical, automobile, instrumentation, lighting, audio, servo motor, etc

The main body adopts high quality Zinc alloy nicked plating.

High temprerature resistance anti-aging durable

Hight toughness clamping jaws wide range of clamping wires; Anti-tension strong water proof;

NOTE: Waterproof silicone ring are replaceable;

Exquisite crafts manship in place attention to every detail treatment precise and neat threads , smooth edges;

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40

Supply SM-6P SM-10P SM-14P SM-26P SM-50P So on many itmes and many servo connectors
